Description

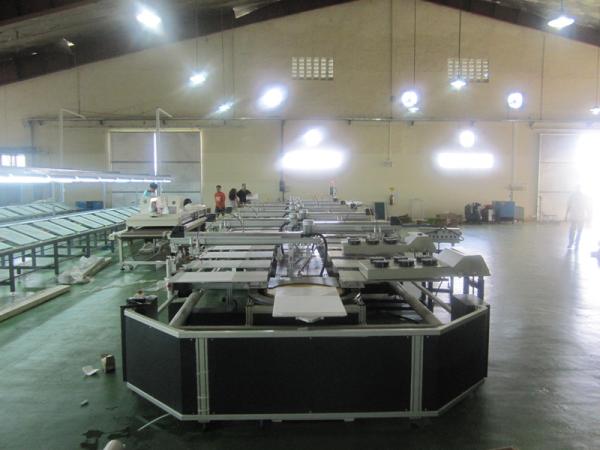

Oval automatic textile printing machine originates from the
carousel machine, and it holds an advantage on performance and
applicability of printing technique. The whole machine adopts
modular design and the main structure is made of aluminum alloy
with high intensity. Since the rotating system is driven by the
high precision servo, the machine has an advantage of responding
very quickly and smoothly, printing with high precision, reliable
performance and easy operation. It is suitable for various printing
techniques such as water print, heat set ink print and rubber
print. Flocking function is the standard configuration. It is the
best choice for screen printing and flocking on the piece and
garment.
Control system
HMI and PLC with self-diagnostics;
Language on HMI can be switched between Chinese and English, and
the help information simplifies operation process and training.
Production speed monitor ensures accurate job costing.
Four operating modes: Focus, Plate warm-up, Auto circle, Single
circle.
Printing plate
Aviation aluminum alloy plate with high intensity can work in high
temperature
Quick assembly and disassembly.
Printing station
On every station independent operation can be done. So does the put
and cut-out operation. Worker can start or stop the whole machine
on every station.
Independent print/flood speed, pressure controls on each print
head.
Print and flood bar can be assembled or disassembled without tool.
Stop position of the print head can be freely set.
AC frequency conversion drive can make stepless speed change.
Screw mandrel contraposition with precision of ± 0.05mm.
Frequency of station printing and travel are adjustable.
Rotating System
Driven by servo system, it runs smoothly with high precision, high
speed.
Multispeed can be selected according to requirement.
Positive rotation and rollback.
Foot Pedal Control
Rotating operation done by foot switch.
It can leap over plates that are needless printing or empty.
Cloth Contraposition System
Infrared contraposition ensures precise cloth position.
Module Expansion
Number of printing stations is optional.
Customer can add printing stations according to his further order.
Design & Construction
Main structure is made of high intensity aluminum alloy, simple,
firm, stable.
Stainless sealed table-board makes operation safe and cleaning
easy.
Modular design makes assembly very quick and convenient for further
expansion.
