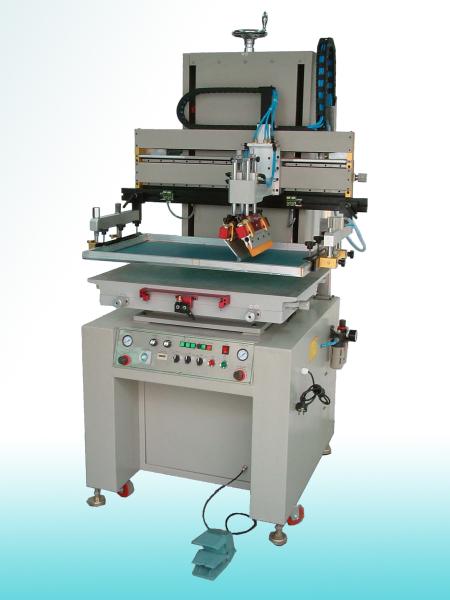

Parameter:
Standard Model | SP-3040S | SP-4060S |
Max. printing area | 200*280(mm) | 300*480(mm) |
Max. screen frame size | 400*480(mm) | 500*680(mm) |
Size of printing table | 300*400(mm) | 400*600(mm) |
Thickness of printing objects | 0~100(mm) |
Printing speed | 700~1000pcs/h |
Machine dimension(L * W * H) | 700*750*1750(mm) | 700*900*1680(mm) |
Packing measurement | 950*930*1930(mm) | 880*1080*1860(mm) |
Net weight | 220KG | 260KG |
Air consumption (L/cycle) | 5.8 |
Power | 220V,470W |
Packing | Wooden box |
Free accessories | 1 set of operation manual 1 set of adjustment tools 2 sets of different sizes of squeegees and flood bars And other accessories |
Application:
Suitable for precise printing on any flat surface of various
materials such as metal, plastic, ceramic, glass, wood etc..
Be widely used in electronic industry, advertising, packing &
printing, sports equipment, toy, stationery, gifts, industrial arts
fields etc..
Printing objects such as decal, cards, transfer paper, paster,
sticker, PVC/PET/PC films, metal nameplate etc which are made of
non-deforming materials.
Features:
Pneumatically driven which reduces noise in operation.
The main accessories are imported from Japan, Germany, Italy and
Korea which are durable and smooth, to ensure the quality of
machine.
Stainless printing table is installed vacuum motor which can fix
the product in printing, and the printing table can be adjusted in
front, back, left and right directions to ensure the printing
effect.
Automatic hydraulic device is installed to peel the screen off
printing surface, easy for washing. Squeegee, flood bar, screen
frame are easy to install and change.
According to the requirements of operator the machine can be
operated in manual, semiautomatic, or automatic model.
A registration pin is installed to keep precise registration and
ensure the precision of repeat-printing is 0.01mm.
Squeegee, flood bar, pressure, speed and stroke, etc. are all
adjustable for your requirements.
Emergency stop switch is installed to guarantee the safety of
operator. Auto-debug function can ensure the printing smoothly and
reduce rejects.
